PL-Universe End Effectors
Flexible & Adaptable | Intelligent & Collaborative | Precise & Efficient

The self-developed end-effectors of PL-Universe Robotics is designed for a range of applications, including fastening, dispensing, oiling, and soldering. This innovative technology seamlessly integrates high-precision control with real-time visual positioning to deliver flexible and intelligent solutions for complex industrial scenarios.Compatible With PL-Universe ProWhite Robot, Embodied AI Robots, Robotic Arm for Industrial Automation, and Others.

Intelligent Fastening End Effector
Intelligent Fastening End Effector
High Precision Dispensing End Effector
High Precision Dispensing End Effector
Adaptive Soldering End Effector
Adaptive Soldering End Effector
Micro-oiling End Effector
Micro-oiling End Effector
Micro-oiling End Effector
Precise Control, Plug and Play, Flexibility for Manufacturing
Core Advantages
High Flexibility
High Flexibility
Frees dispensing/oiling processes from fixed equipment, and when combined with embodied robots' mobility, easily handles large workpieces (such as automotive glass, battery trays) or multi-station, small-batch production tasks.
Cost Reduction and Efficiency Gains
Cost Reduction and Efficiency Gains
Delivers precise dispensing/oiling control with exceptionally high yield rates, reducing material waste and lowering costs.
Specifications
Dimensions
175mm(L)×101mm(W)×250mm(H)
Weight
4kg
Type
High-Viscosity Spray Valve
Air Supply Pressure
3-6 kgf/cm²
Control Solenoid Valve
Compatible with both 5/2-way and 3/2-way types
Spray Area
2-20 mm²
Operating Viscosity
1-30000cps
Body Material
SUS304 Stainless Steel
Inlet Pressure
＜10 kgf/cm²
Inlet Size
1/8"npt(f)
Flow Adjustment
Precision Gear-Screw Metering
Operating Rate
＜600/min
Oil Purge / Cleaning Module
Optional

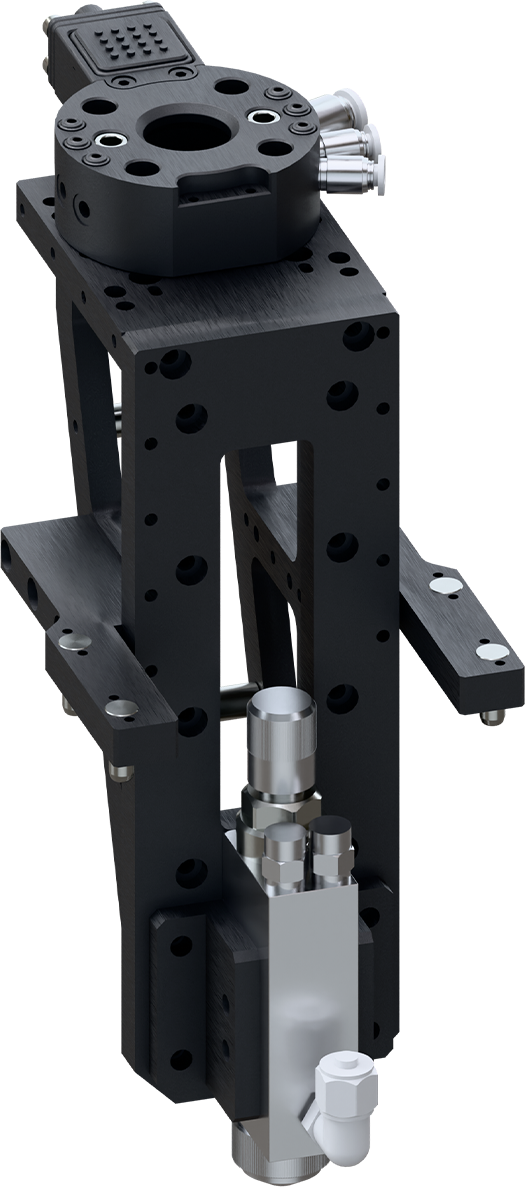

产品参数图
Features
Multi-Mode Coating
Multi-Mode Coating
Supports various coating patterns, including spot coating (oiling specific points), line coating (drawing lines along a trajectory), and surface coating (covering an area).
Real-Time Monitoring and Feedback
Real-Time Monitoring and Feedback
Utilizes flow and pressure sensors to provide real-time oil discharge status feedback, and interfaces with the Manufacturing Execution System (MES) to enable data traceability and error-proofing.
Application Scenarios
  • 3C Electronics Manufacturing
    3C Electronics Manufacturing

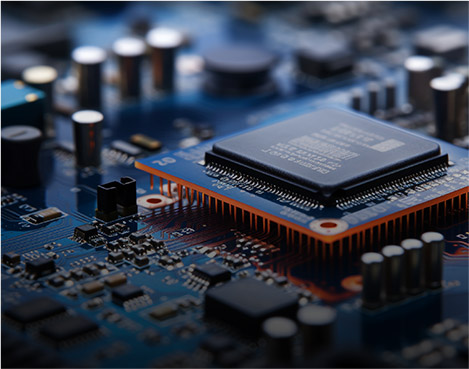

  • Semiconductor Packaging
    Semiconductor Packaging
  • Automotive Part Manufacturing
    Automotive Part Manufacturing
  • Medical Device Manufacturing
    Medical Device Manufacturing
