PL-Universe End Effectors
Flexible & Adaptable | Intelligent & Collaborative | Precise & Efficient

The self-developed end-effectors of PL-Universe Robotics is designed for a range of applications, including fastening, dispensing, oiling, and soldering. This innovative technology seamlessly integrates high-precision control with real-time visual positioning to deliver flexible and intelligent solutions for complex industrial scenarios.Compatible With PL-Universe ProWhite Robot, Embodied AI Robots, Robotic Arm for Industrial Automation, and Others.

Intelligent Fastening End Effector
Intelligent Fastening End Effector
High Precision Dispensing End Effector
High Precision Dispensing End Effector
Adaptive Soldering End Effector
Adaptive Soldering End Effector
Micro-oiling End Effector
Micro-oiling End Effector
High Precision Dispensing End Effector
Precise Control, Plug and Play, Flexibility for Manufacturing
Core Advantages
High Flexibility
High Flexibility
Frees dispensing/oiling processes from fixed equipment, and when combined with embodied robots' mobility, easily handles large workpieces (such as automotive glass, battery trays) or multi-station, small-batch production tasks.
Cost Reduction and Efficiency Gains
Cost Reduction and Efficiency Gains
Delivers precise dispensing/oiling control with exceptionally high yield rates, reducing material waste and lowering costs.
Specifications
Dimensions
175mm(L)×101mm(W)×250mm(H)
Weight
4kg
Type
Double-Action Suction Diaphragm Valve
Air Supply Pressure
4-7Kgf/cm²
Control Solenoid Valve
Compatible with both 5/2-way and 3/2-way types
Minimum Dispensing Volume
0.01ml
Maximum Flow Rate
800g/10s
Operating Viscosity
1-100.00cps
Body Material
SUS304 Stainless Steel + POM + PTFE
Inlet Pressure
＜10 kgf/cm²
Inlet Size
1/8"npt(f)
Flow Adjustment
Regulated by supply air pressure
External Dimensions
31 mm (Dia.)×105mm (H), Square

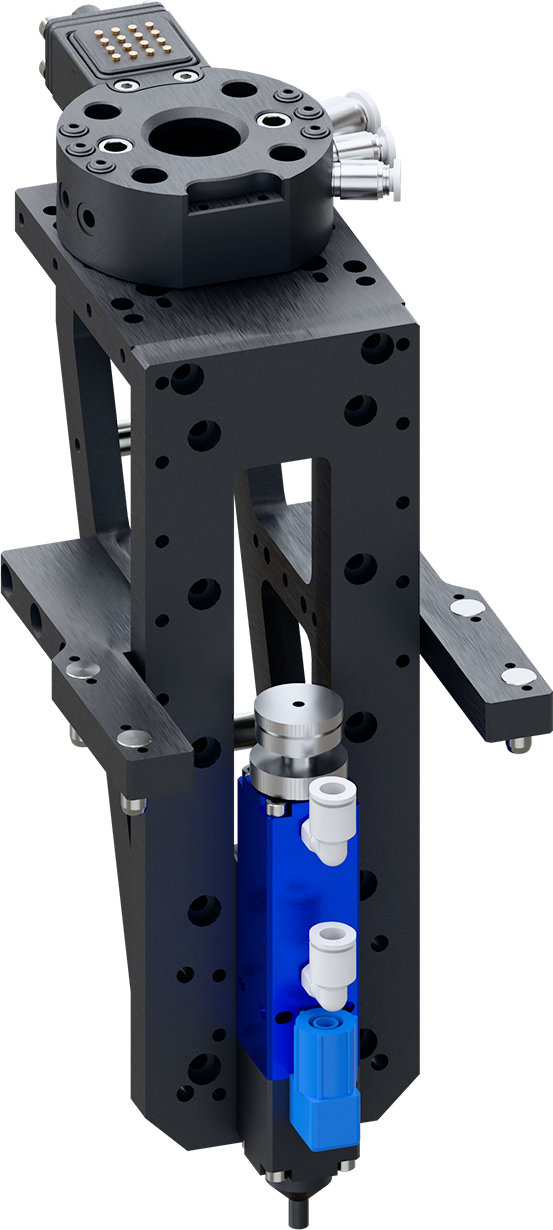

产品参数图
Features
High-Precision Metering System
High-Precision Metering System
Utilizes servo motors or piezoelectric drives to achieve precise measurement at microliter (μl) or even nanoliter (nl) level, achieving over 99% dispensing consistency.
Integrated Design
Integrated Design
Incorporates the dispense valve, controller, metering unit, and sensors into a single compact and lightweight module to minimize the load on the robot.
Application Scenarios
  • 3C Electronics Manufacturing
    3C Electronics Manufacturing
  • Semiconductor Packaging
    Semiconductor Packaging
  • Automotive Part Manufacturing
    Automotive Part Manufacturing
  • Medical Device Manufacturing
    Medical Device Manufacturing
